4.2 Multilevel Inheritance
In the Multilevel inheritance a class
derived from another derived class. If a class B is derived form class A and
class C derived from class B, like a figure 4.2 , then it is called multilevel
inheritance. Because there are more than one levels. You can also derive class
C , and then derive its derived and so on.

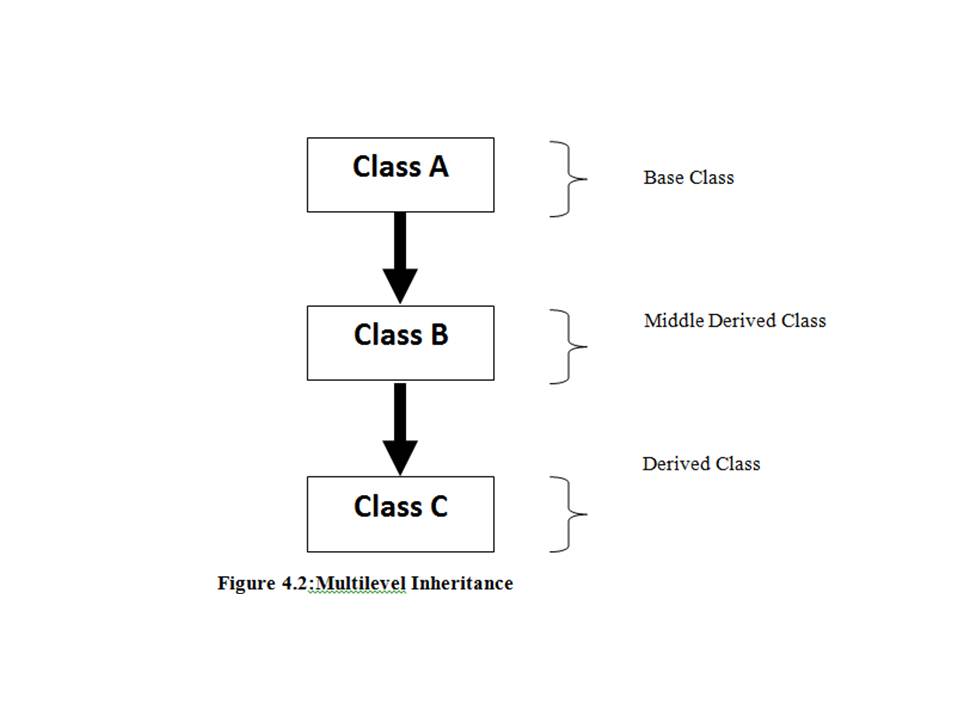

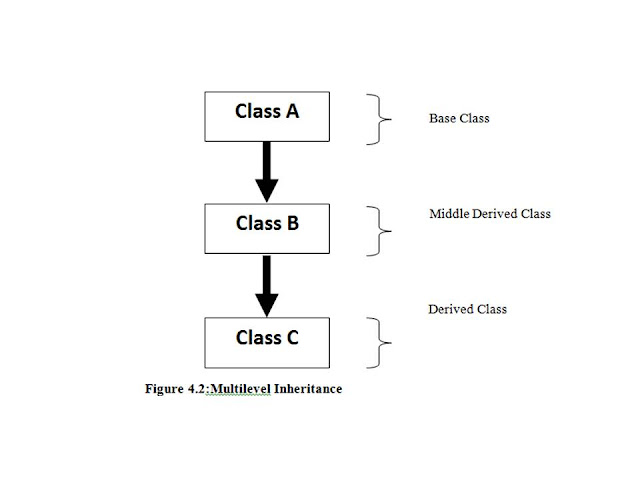

Figure 4.2:Multilevel
Inheritance
Here we have given some example to understand the
concept of Multilevel inheritance.
Example 4.4 Multilevel inheritance
#include<iostream.h>
class A
{
int a1, a2;
public:
void getdata()
{
cout<<”\nEnter the
value of a1 and a2 :”<<endl;
cin>> a1 >>
a2;
}
void putdata()
{
cout<<”\nThe value
of a1 is :”<< a1 << “and a2
:”<<a2;
}
};
class B : public
A
{
int b1, b2;
public:
void indata()
{
cout<<”\nEnter the
value of b1 and b2 :” <<endl;
cin>> b1 >>
b2;
}
void outdata()
{
cout<<”\nThe value
of b1 is :”<< b1 << “and b2
:”<<b2;
}
};
class C : public
B
{
int c1, c2;
public:
void input()
{
cout<<”\nEnter the
value of c1 and c2 :” <<endl;
cin>> c1 >>
c2;
}
void output()
{
cout<<”\nThe value
of c1 is :”<< c1 << “and c2
:”<<c2;
}
};
void main()
{
C Obj;
Obj.getdata(); // member function of class A
Obj.indata(); // member function of class B
Obj.input(); // member function of class C
Obj.putdata(); // member function of class A
Obj.outdata(); // member function of class B
Obj.output(); // member function of class C
}
Output of
Example 4.4 Multilevel inheritance
Enter the value of
a1 and a2 :
2
3
Enter the value of
b1 and b2 :
4
5
Enter the value of
c1 and c2 :
6
7
The value of a1 is :
2 and a2 is : 3
The value of b1 is :
4 and b2 is : 5
The value of c1 is :
6 and c2 is : 7
Example 4.5
Multilevel inheritance
#include<iostream.h>
class First
{
protected:
int a; // a is protected variable will inherit in derived
classes
public:
void getdata()
{
cout<<”\nEnter the
value of a :” <<endl;
cin>> a;
}
void putdata()
{
cout<<”\nThe value
of a is :”<< a;
}
};
class Second :
public First
{
protected:
int b; // b is protected variable will
inherit in derived classes
public:
void indata()
{
cout<<”\nEnter the
value of b :” <<endl;
cin>> b;
}
void
outdata()
{
cout<<”\nThe value
of b is :”<< b;
}
};
class Third : public
Second
{
int c;
public:
void input()
{
cout<<”\nEnter the
value of c :” <<endl;
cin>> c;
}
void output()
{
cout<<”\nThe value
of c is :”<< c;
}
void addition ()
{
int d = a + b + c;
cout<<”\n Addition of
variables: ”<< d;
}
};
void main()
{
Third T ;
T.getdata(); // member function of class First
T.indata(); // member function of class
Second
T.input() // member function of
class Third
T.putdata();
T.outdata();
T.output();
T.addition();
}
Output of
Example 4.5 Single inheritance
Enter the value of a
:
2
Enter the value of b
:
4
Enter the value of c
:
6
The value of a is :
2
The value of b is :
4
The value of b is :
6
Addition of both variables : 12
Example 4.6 Multilevel inheritance
#include<iostream.h>
#include<string.h>
class Student
{
char name[10];
int rollno;
public:
void getdata()
{
cout<<”\nEnter the
name :”<<endl;
cin>> name;
cout<< “\nEnter
the Roll No. :”<<endl;
cin>>rollno;
}
void putdata()
{
cout<<”\n
Name :”<< name;
cout<<”\n Roll No.
:”<<rollno;
}
};
class Marks : public
Student
{
int marks[4];
protected:
int total;
public:
void getmarks();
void putmarks();
};
void Marks ::
getmarks()
{
for(int i = 0; i <= 4
; i++)
{
cout<<”\nEnter
the Marks of Subject ”<< i+1<< “: =” <<endl;
cin>> marks[i];
}
}
void
Marks::putmarks()
{
total = 0;
for(int i = 0; i <= 4
; i++)
{
cout<<”\nMarks
of Subject ”<< i+1<< “: =” << marks[i];
total = total +
marks[i];
}
cout<<”\n Total
Marks :”<<total;
}
class Result :
public Marks
{
int perc;
boolean pass; // it will store boolean value TRUE for pass and
FALSE for fail
char division[10];
public:
void check();
void display();
};
void Result ::
ckeck()
{
pass = TRUE;
for(int i = 0; i <= 4 ; i++)
{
if (marks[i]<30)
pass =
FALSE;
}
perc = (total * 100) / 400;
}
void Result ::
display()
{
if (pass = = TRUE)
{
if(perc >= 60)
strcpy(division,
“First”);
elseif(perc >= 45)
strcpy(division,
“Second”);
elseif(perc >= 30)
strcpy(division,
“Third”);
else
strcpy(division,
“Fail”);
}
else
{
cout<<”\nStudent
is Fail”;
break;
}
cout<<” \n Percentage
:”<<perc<< “%”;
cout<<”\n Division
:”<<division;
}
void main()
{
Result S;
S.getdata();
S.getmarks();
S.putdata();
S.putmarks()
S.check();
S.display();
}
Output of
Example 4.6 Multilevel inheritance
Enter the Name :
Ravi
Enter the Roll No. :
1104
Enter the Marks of
Subject 1
65
Enter the Marks of
Subject 2
69
Enter the Marks of
Subject 3
76
Enter the Marks of
Subject 4
54
Name : Ravi
Roll No.: 1104
Marks of Subject 1
65
Marks of Subject 1
69
Marks of Subject 1
76
Marks of Subject 1
54
Total Marks : 264
Percentage : 66 %
Division : First
